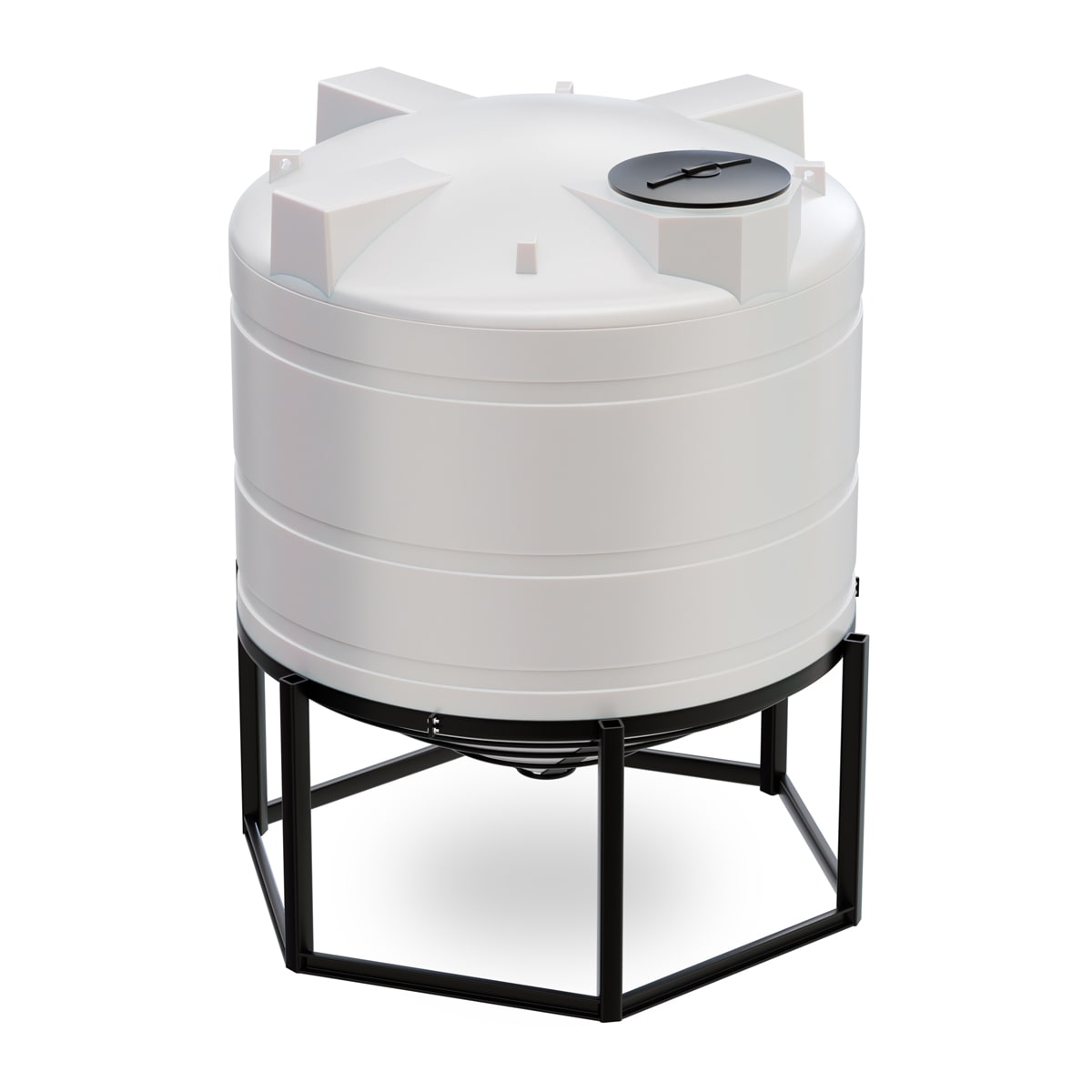

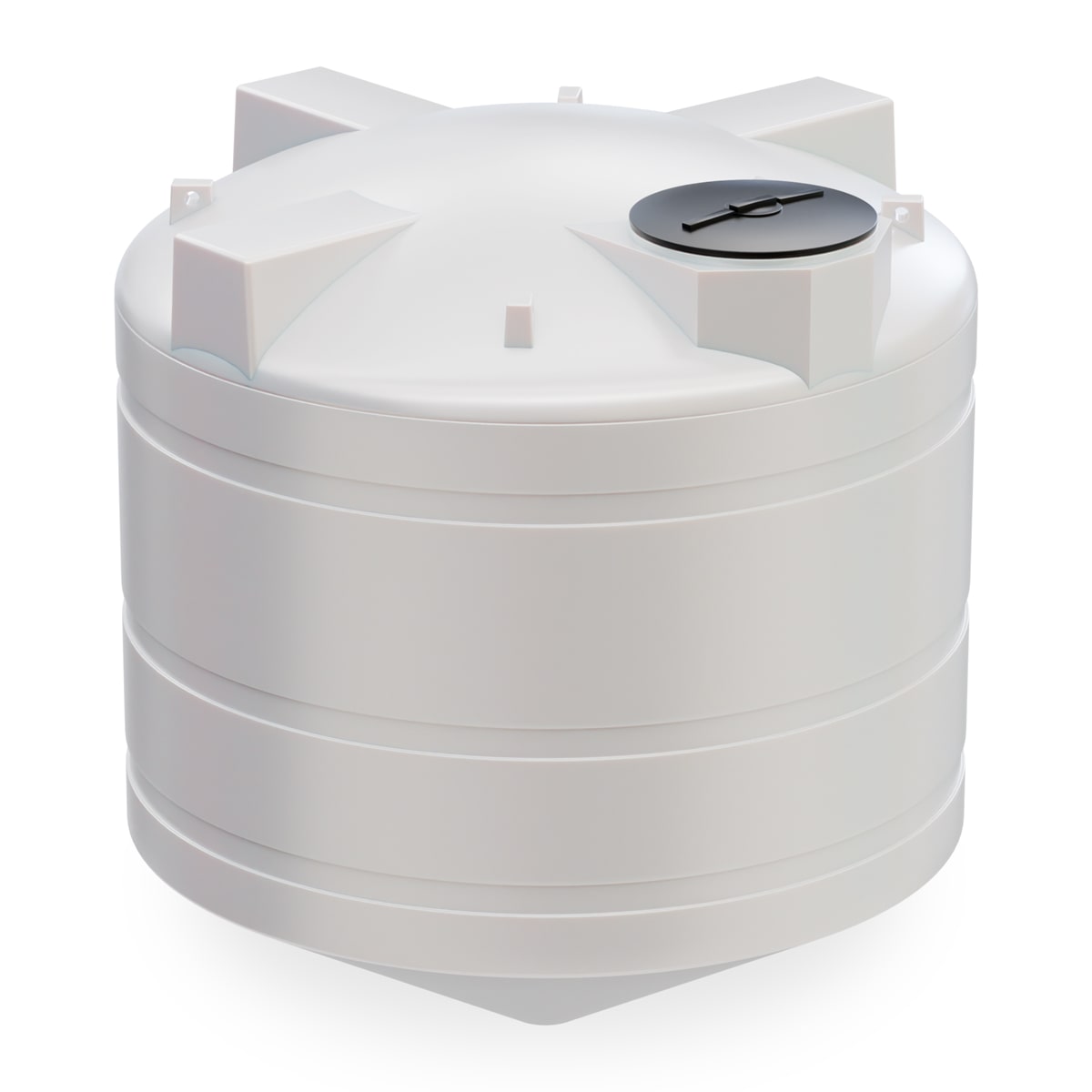

2000 Gallon Cone Bottom Tank

The 2000 Gallon Cone Bottom Tank is engineered for high‐capacity storage and is the ideal solution for applications ranging from potable water storage and agricultural irrigation to chemical handling and industrial mixing. Its cone bottom design ensures that every last drop is extracted, reducing waste and simplifying cleaning and maintenance. Whether you need a reliable water reservoir or a versatile container for chemicals, this tank delivers unmatched performance.

• Complete Drainage Efficiency


The unique conical bottom design channels liquid to the drain outlet for quick and virtually complete emptying.

• FDA-Certified for Potable Water Storage

Constructed with FDA-approved materials, it safely holds drinking water while maintaining purity and meeting stringent health standards.

PLEASE NOTE: The Tank Stand is an Optional Add-On.

For optimal performance with your 2,000-gallon Cone Bottom Tank, we recommend the 90" stand. It’s specifically designed to fit securely, enhancing drainage, stability, and maintenance efficiency.

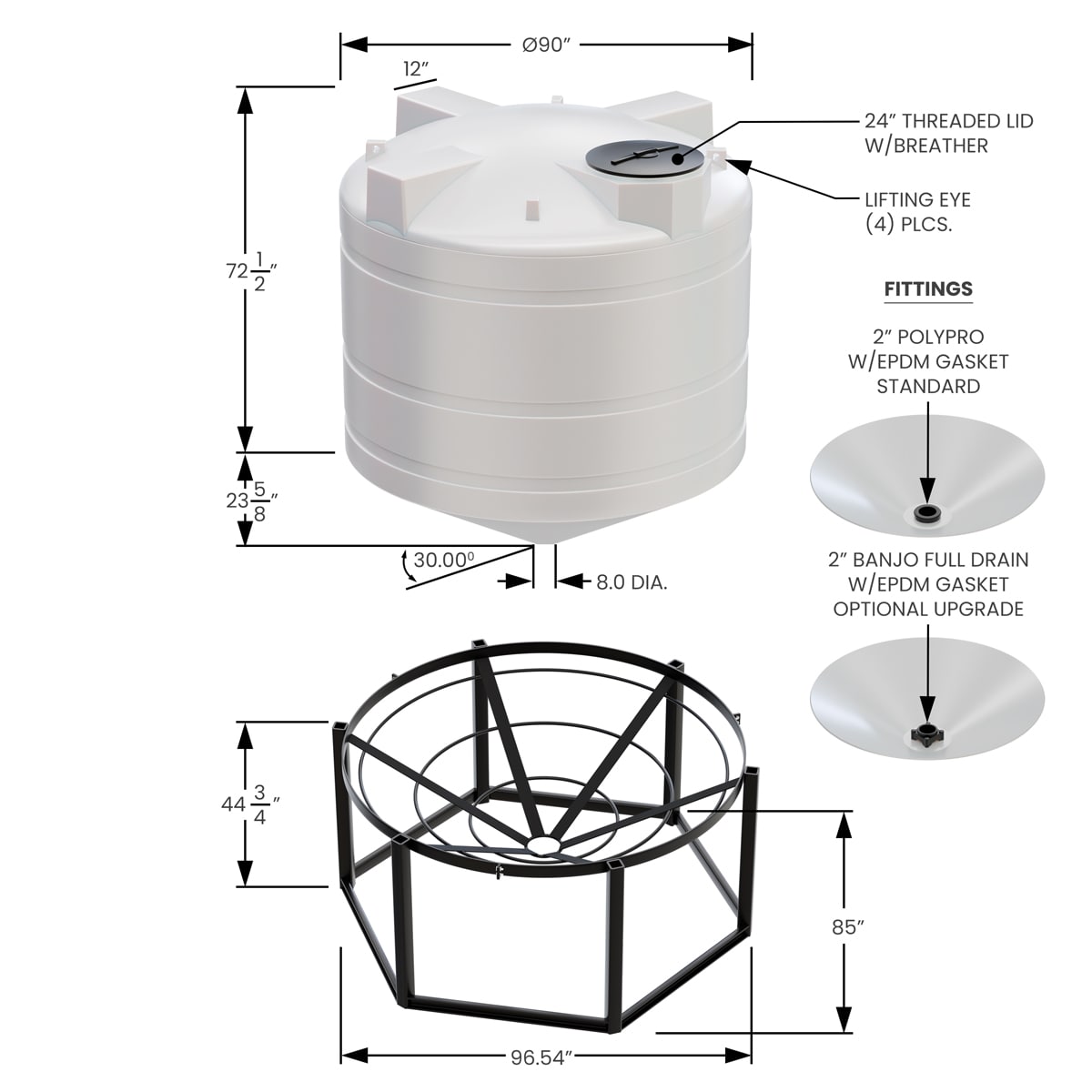

• 2000 Gallon Cone Bottom Tank Technical Drawing
• Optional: 90" Cone Bottom Stand Specifications
• 5 Year Warranty
• Complies with U.S. Food and Drug Administration regulation 21CFR 177.1520 (1) 3.1 and 3.2 for storage of potable water.
• Capacity: 2000 gallons
• Material: High-Density Polyethylene (HDPE)
• Specific Gravity: 2.0
• Lid: 24" threaded lid with breather valve
• Choice of Fitting:
  • 2" PolyPro w/ EPDM Gasket - will leave a little bit of liquid left in the tank
  • Full Drain 2" Banjo w/ EPDM Gasket - all liquid will fully drain

• Color: White
• Weight: 585 lbs
• Diameter: 90"
• Height: 96"
